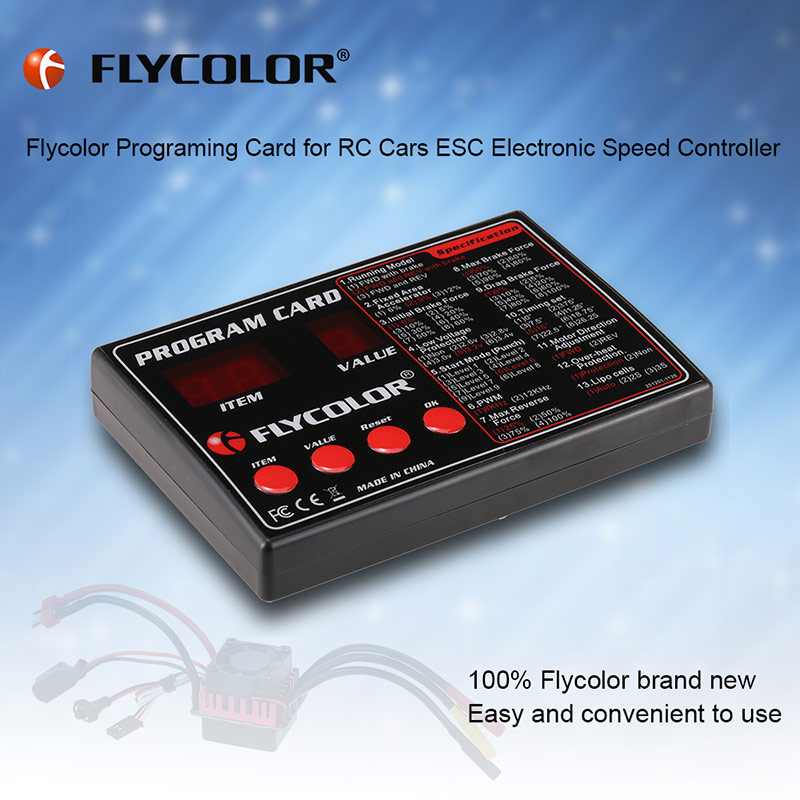

Using Flycolor programing card to programming is the most convenient choice, only need to insert the signal cable of ESC into the programming card. Press the [ITEM] button to select the item you want, and press [VALUE] button to select the value of this item, then press the [OK] button, the VALUE window displays "S" which means this item was stored. (To restore the factory default value press the [RESET], then press [OK] ).
Features:
100% brand new
Easy and convenient to use
Made of good material
High quality and durable in performance
Suit for RC cars ESC programing
Specifications:
Brand: Flycolor
Item name: Programing Card
Running mode: FWD with brake / FWD and REV with brake / FWD and REV
Fixed area accelerator: 6% / 9% / 12%
Initial brake force: 0% / 5% / 10% / 20% / 30% / 40% / 50% / 60%
Low voltage protection: Non / 2.6V / 2.8V / 3.0V / 3.2V / 3.4V
Start mode (punch): Level 1 / Level 2 / Level 3 / Level 4 / Level 5 / Level 6 / Level 7 / Level 8 / Level 9
PWM: 8KHz / 12KHz
Max reverse force: 25% / 50% / 75% / 100%
Max brake force: 50% / 60% / 70% / 80% / 90%
Drag brake force: 0% / 5% / 10% / 20% / 40% / 60% / 80% / 100%
Timing set: 0° / 3.75° / 7.5° / 11.25° / 15° / 18.75° / 22.5° / 26.25°
Motor direction adj.: FWD / REV
Over-heart protection: Protection / Non
Lipo cells: Auto / 2S / 3S
Item dimensions: 95 * 650 * 150mm (deviation due to manual measurement)
Item weight: 44.5g
Package Information:
Package size: 10 * 7 * 2cm / 3.9 * 2.8 * 0.8in
Package weight: 50g / 1.8oz
Polybag package
Package List:
1 * Programing Card
