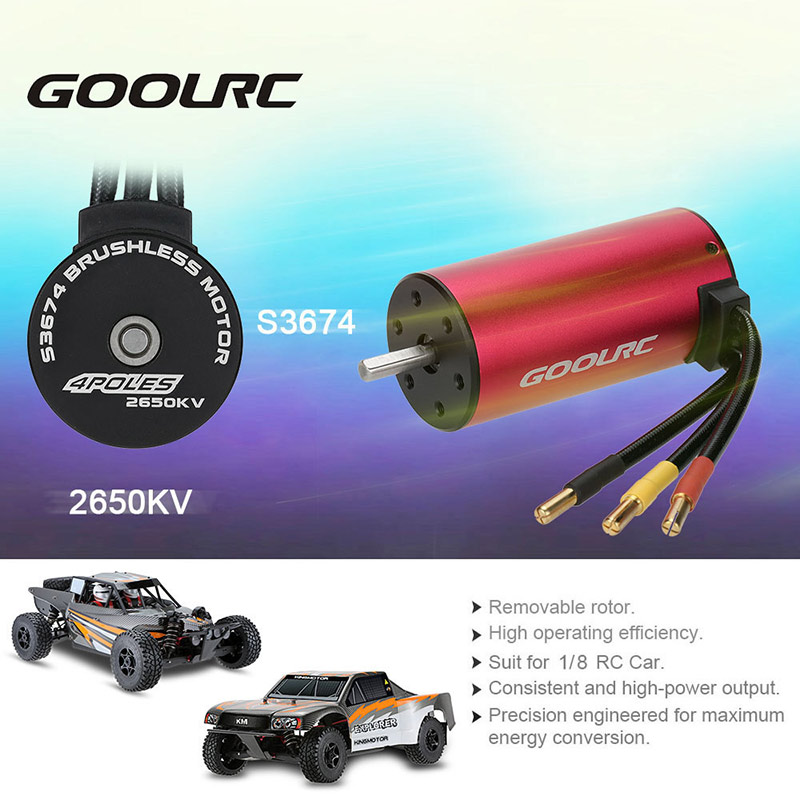

The set includes a S3674 2650KV motor, a 120A ESC and a program card, which is perfectly fit for the 1/8 RC car. This motor is built from the best materials available, and is designed to provide both quality and performance at an affordable price. The ESC features enhanced throttle response,excellent acceleration, strong breaks and throttle linearity. Equipped with programming card allow you to conveniently program your ESC settings.
Features:
High-torque and high-efficiency.
High purity copper windings maximizes efficiency
Precision engineered for maximum energy conversion
Precision balanced rotor,smoothness for best reliability and maximum RPM
Super smooth and accurate throttle linearity
Built-in high-efficient and high-power 6.1V/3A SBEC
Mutiple protection features: Low voltage cut-off protection for lithium or nickel battery, Over-heat protection, Throttle signal loss protection, Motor blocked protection
Motor Specifications:
Brand: GoolRC
Item No.: S3674
KV(RPM/Volt): 2650KV
RPM: 50000
Watt: 1800W
Max current: 100A
Max voltage: <18.4V
Ressistance: 0.007

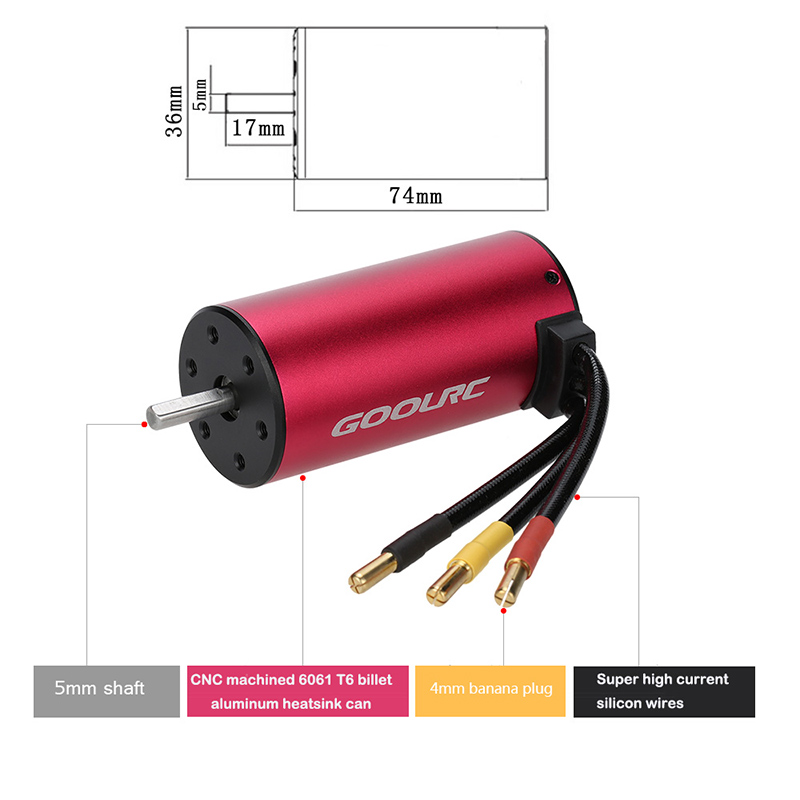

Diameter: 36mm
Length: 74mm
Shaft length: 17mm
Shaft diameter: 5mm
Connector: 4mm golden banana connector
Weight: 289g

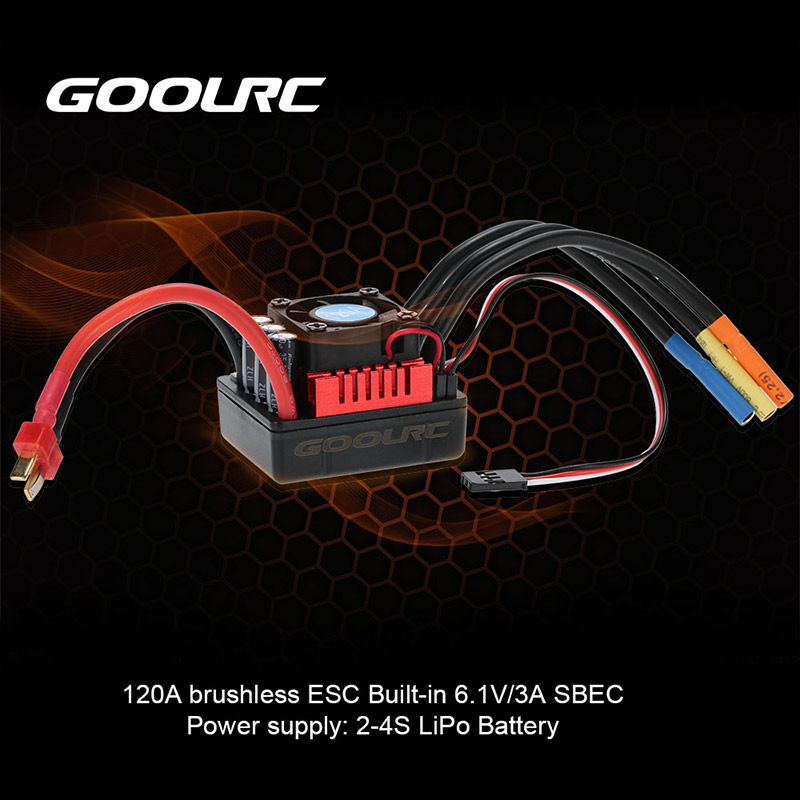

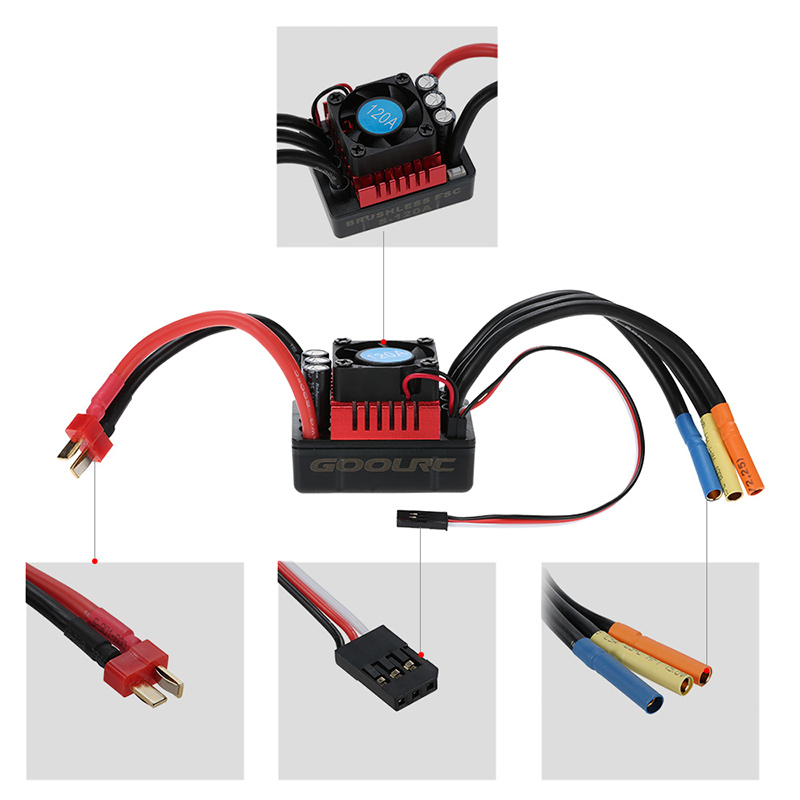

ESC Specifications:
Brand name: GoolRC
Continous current: 120A
Burst current: 600A/10sec
Power supply: 2-4S LiPo / 4-8S NiMh
SBEC: 6.1V/3A
Power supply plug: T plug
Motor plug: 4mm banana connector
Suit for: 1/8 RC car
Cooling system: Cooling fan
Programmable: YES
Size: 50 * 40 * 35mm
Weight: 115g

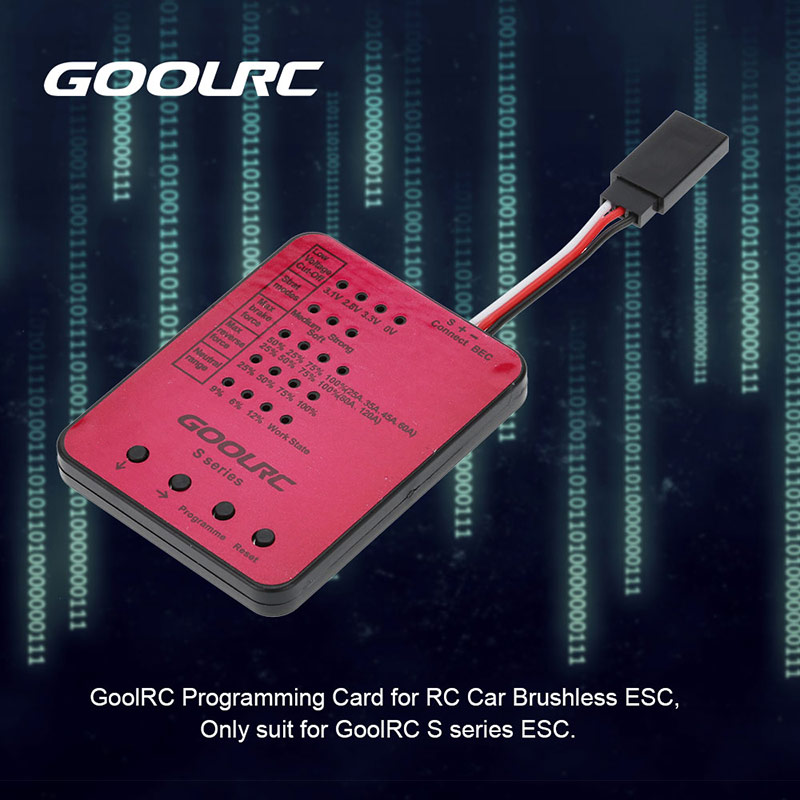

Program Card Specifications:
Brand: GoolRC
Low voltage cut off: 3.1V/Cell 2.8V/Cell 3.3V/Cell No cut-off
Start mode：medium, soft, strong
Max brake force: 25%, 50%, 75%, 100%
Max reverse force: 25%, 50%, 75%, 100%
Neutral range: 6%, 9%, 12%, work state
Package Information:
Package size: 10 * 8 * 6cm / 3.9 * 3.2 * 2.4in
Package weight: 454g / 16.0oz
Gift box package
Package List:
1 * GoolRC S3674 2650KV Motor
1 * GoolRC 120A ESC
1 * Program Card
