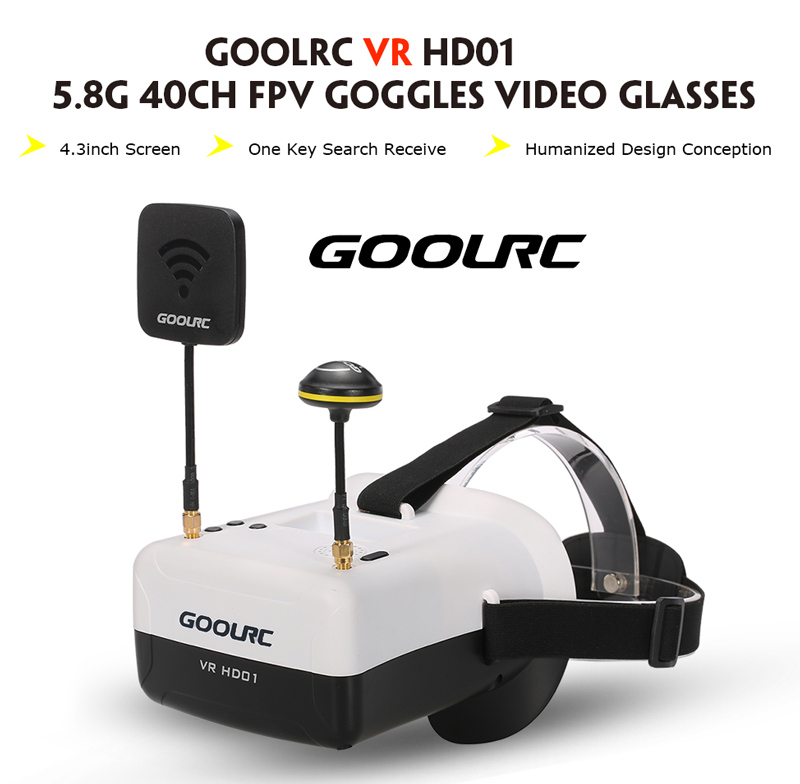

GoolRC duo antennas 4.3 inch HD FPV Goggles, a good partner for your RC racing drones quadcopters, let you have a wonderful virtual experience.
Warm notice: the battery is not included, you need buy one by yourself.
Features:
7-23V DC accepted, wide range power input.
Built-in 5.8G 40CH receiver with long receiving range.
With adjustable 3 points head strap and skin-friend face sponge mask design, comfortable to wear.
Super-light design; high quality and durable in use.
English and Chinese languages optional, and the brightness adjustable.

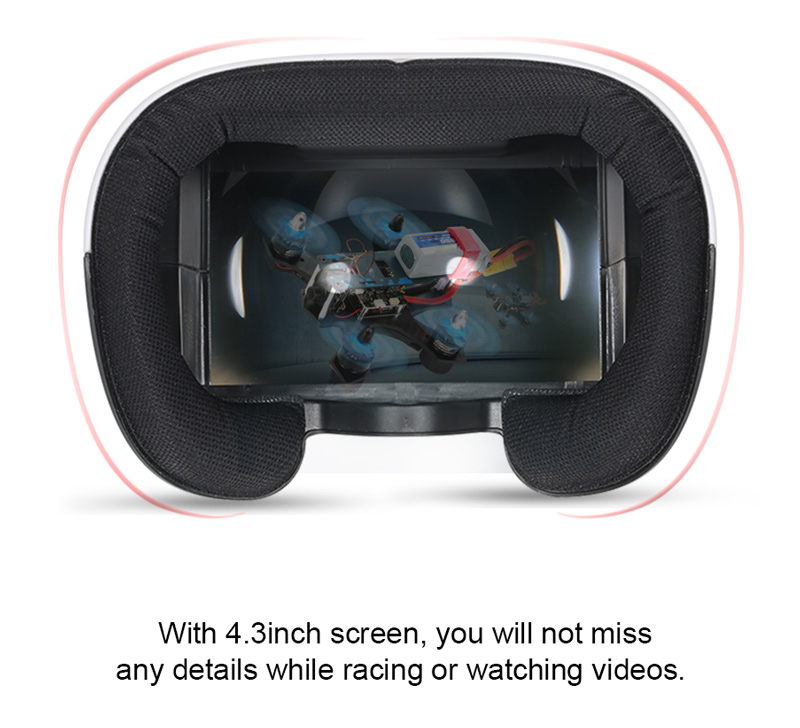

4.3 inch screen with 480 * 272px resolution, providing sharp image and virtual experience.

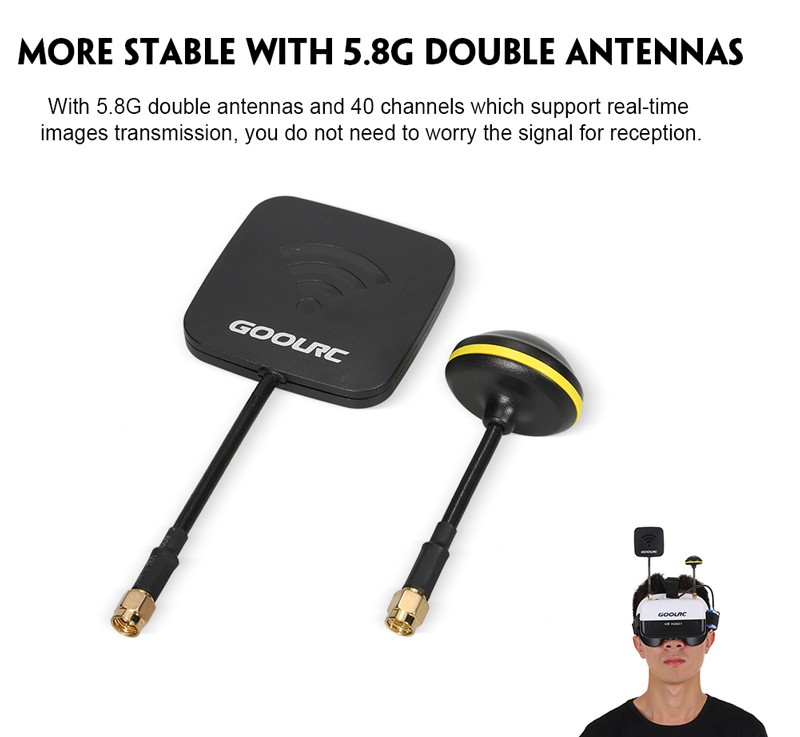

Duo antennas design: Amplify circle engage best performance of RX and use two types of antennas (Omni/ Linear Polarized antennas) at the same time.
Video input: 75Ω, composite video signal / CVBS / AV in, for better sharing video from other RX device, for example FatShark / ImmersionRC.
Specifications:
Brand: GoolRC
Product name: GoolRC VR HD01
Description: Duo Antennas 4.3 Inch HD FPV Goggles
Transmission: 5.8G 40CH
Screen size: 4.3 inch
Resolution: 480 * 272px
Frequency: 5645-5945MHz
Brightness: 500cd/m² high brightness, outdoor usage
View angle: Wide visible angle, 0/120 degree (Horizontal/ Vertical)
FOV: Right 80 degree. (Offer bigger screen than normal video goggles)
Power input range: 7-23V DC
Recommended battery: 2-3S (7.4-11.1V)
Notice: the working hours vary due to different type and performance of battery
Power consumption: About 220mA@7.4V; about 150mA@12V
Auto searching: YES, enhance v3.0 auto searching technology
On-Screen channel info displaying: YES
Antennas: 5.8GHz FPV tuned antennas, 2pcs
Video input: 75Ω, Composite video signal / CVBS / AV in
Working temperature: -10℃-60℃
Plug for antenna: SMA
Suit for: Hubsan H501S H502S, JXD 509G, GoolRC T5G, JJR/C H8D
Furibee F90, QX95, QX90, Inductrix BLH8580
QAV250, QAV180, XK X252

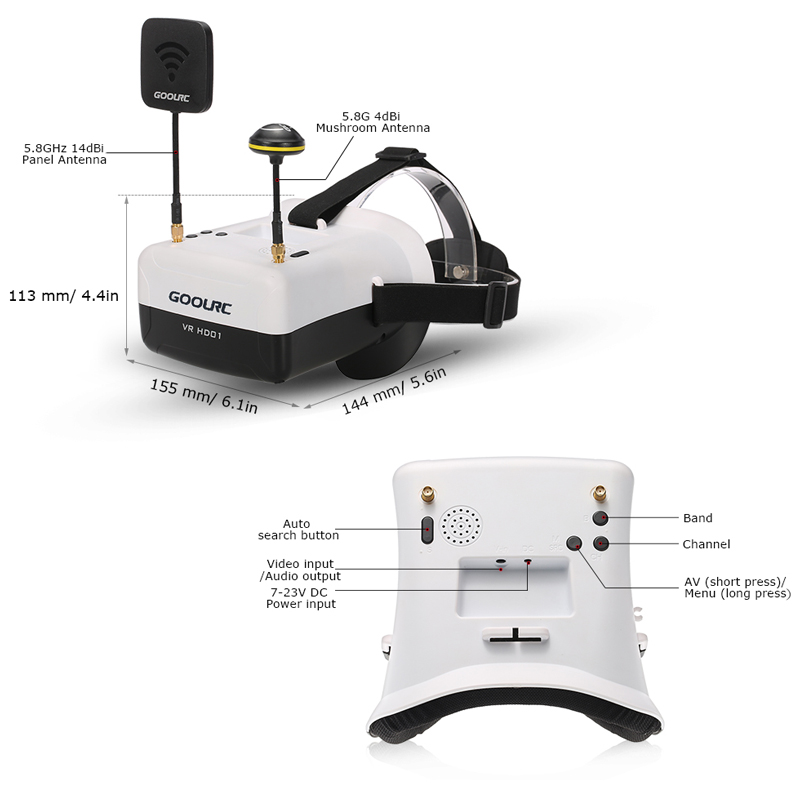

Body size: 155 * 144 * 113mm / 6.1 * 5.6 * 4.4in
Weight: 295g (battery not including)
There might be deviation due to manual measurement.
Package information:
Package size: 19 * 19 * 12cm / 7.48 * 7.48 * 4.72in
Package weight: 516g / 1.14lb
Gift box package
Package list:
1 * VR HD01 5.8G FPV Goggles
1 * 4dBi 5.8GHz Mushroom Antenna
1 * 14dBi 5.8GHz Panel Antenna
1 * Video Input Cable
1 * Power Input Cable (with JST plug)
1 * User Manual
