Features:
126 Channels jump frequency automatically with high anti-jamming ability to ensure works reliability and no time delay during data transmission.
There are 7 groups of ID coding, and user can use 7 groups individual wireless net without any interference with each other in the same place.
With tricolor LED displaying indicators, the wireless DMX512 can work with all DMX lamps and get rid of the limitation of connecting cable completely.
Built-in battery and comes with power adapter, and supports 400 meters of communication distance, it is convenient and easy to use anytime and anywhere.

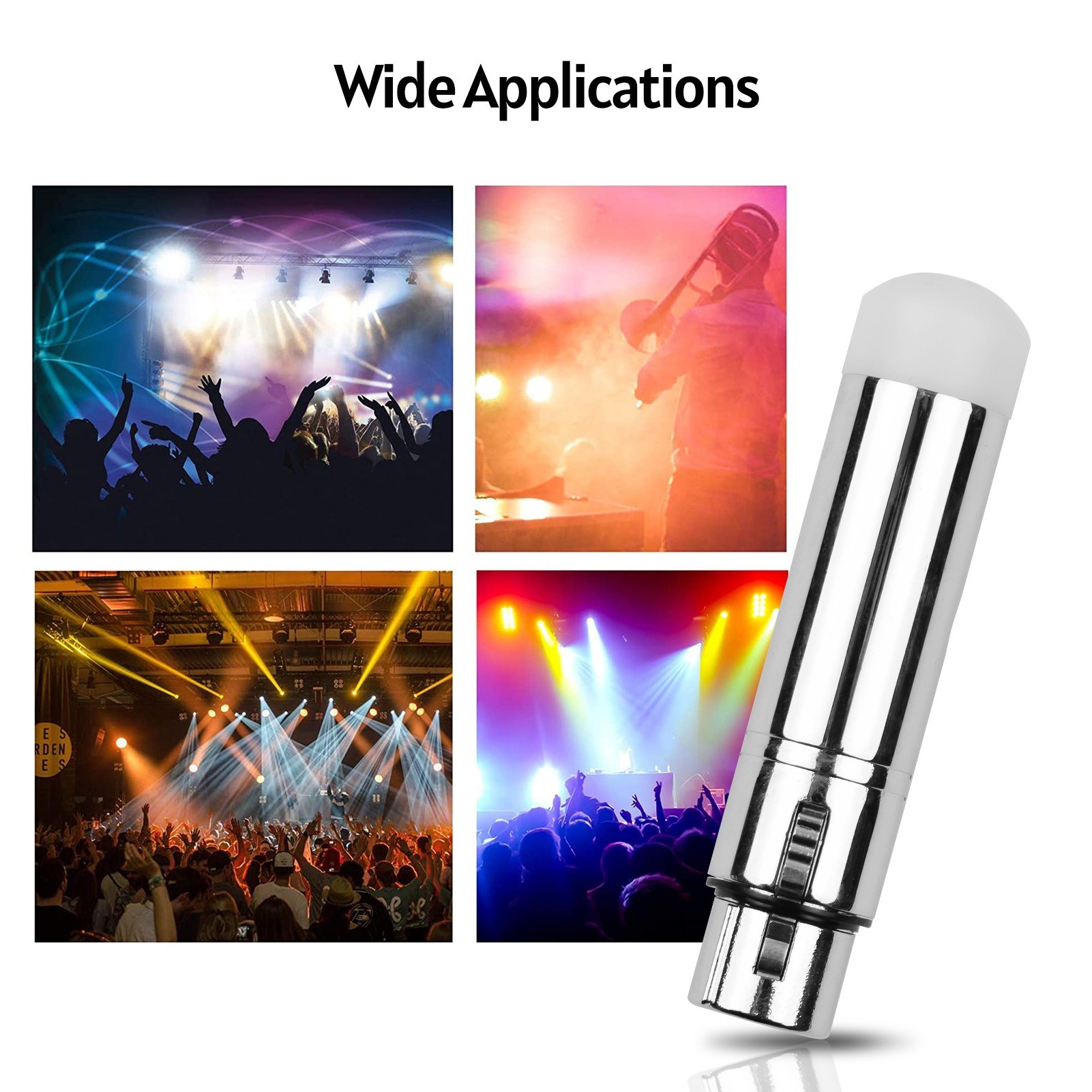

Suitable for stage light, par lights, Disco hall lighting, Gymnasium lighting, TV station, professional showplace, topic park, bar lighting and so on.
Operating manual:
ID code and LED color corresponding relationship:
1: RED
2: GREEN
3: RED+GREEN
4: BLUE
5: RED+BLUE
6: GREEN+BLUE
7: RED+GREEN+BLUE
1) Press momentary switch above the side led indicator to indicate ID setting.
2) Press again to set ID key, to the color ID desired, adding 1 each time you press the switch will advance the color ID code.
3) Working condition:
LED constant lit up: No DMX or wireless signal.
Red LED flash: Transmitting.
Green LED flash: Receiving
4) RF frequency 2.400 - 2.525G, total 126 channels, searching automatically.
5) ID Code 1-7 groups ID code, press KEY for setting, it only can work under same ID code of transmitter and receiver. ( Same LED Color )
Specifications:
Color:
Black / White(optional)
Material: ABS
Channel: 126 CH
ID Coding: 7 Groups
DMX connector: 3pin Female
Input Voltage: 5VDC 500mA MIN
Item Length: 8cm / 3.1in
Communication Distance: 400M (visible distance)
Max Transmitting Power Rate: 20dBm
Package Size: 15 * 10.5 * 5.5cm / 5.9 * 4.1 * 2.1in
Package Weight: 169g / 5.9oz
Package List:
1 * DMX Receiver
1 * Power Adapter
1 * User Manual(English)
