This controller is designed for RGB LED strip, module, etc. After installing an app called "Happy Lighting", you can control the LED strip with your Smartphone (forIOS 6.0 or for Android system 4.3 version or above) via
BT 4.0 to achieve light switching, brightness adjusting, color changing .There are 16 million colors and dozens of light changing modes. Connected with the most advanced PWM(pulse width modulation)control technique, it is suited for all 3 channels with 4 wires (common anode)LED full color led products.
Features:
Controlling the LED strip, LED module and the LED light box with your smart phone by an app called "Happy Lighting". This controller supports for IOS 6.0 version and Android version 4.3 or above. And this controller is BT enabled.
It can achieve light switching, brightness adjusting, color changing. There are 16 million colors and dozens of light changing modes like: fade, strobe. The speed of the flashing, strobe is adjustable.
Timers function is a good way of running the lights at different times.
Camera function: You can even take a picture of something firstly, then open the app and select this picture. The lighting color will imitate the color of the picture.
Music function and sound function: The light will strobe according to the rhythm the music from your phone or the voice from outside.
Group control function: you can control 4 LED device at the same time, you can add the device to different groups defined by yourself.
Wide range: the control distance is 15-20 meters.
Specifications:
Connection Methods: BT Version 4.0
Suitable Phone OS: for IOS 6.0 and for Android 4.3 version above
Each group can control 4 devices and can reach free group control.
Software language: English , Chinese
Working Temperature: -20℃-55℃
Working Voltage: DC12V-24V
Output current: <2A per CH
Output powe: 12V:<72W, 24V:<144W
Output channel: 3CH/RGB
Effective Remote Distance: No barrier 15-20M

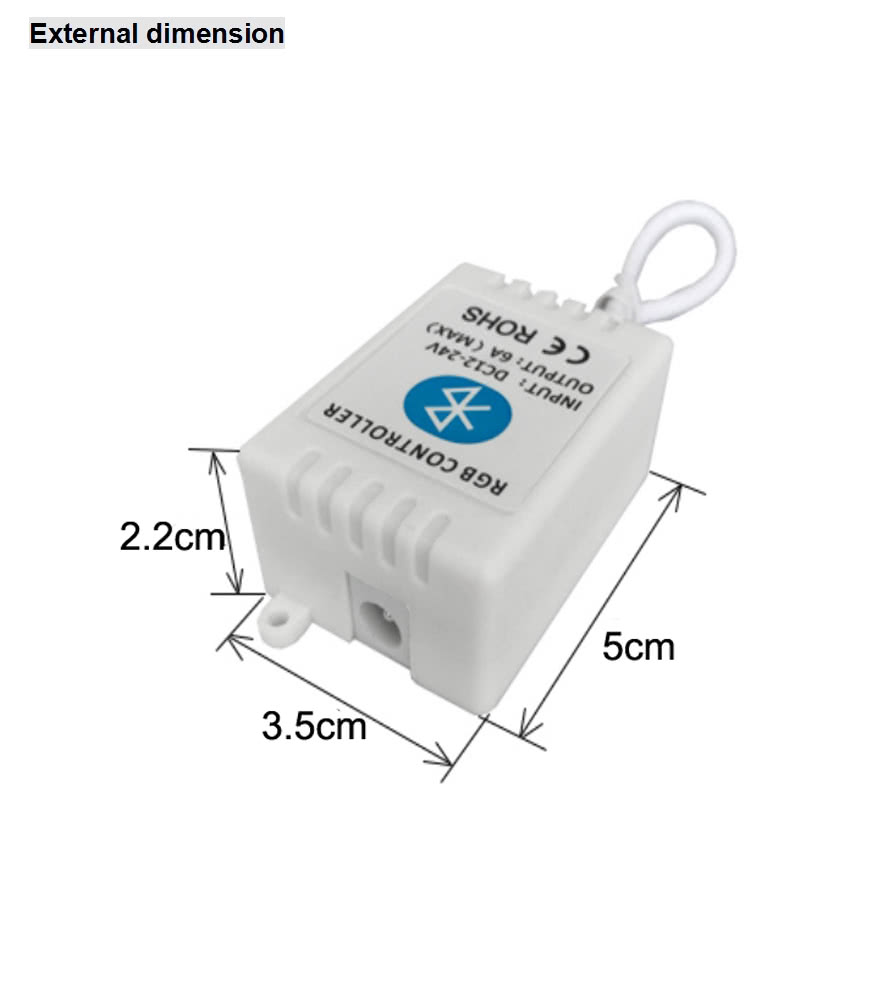

Item size:5 * 3.5 * 2.2cm / 1.96
* 1.37
* 0.86
in(L*W*H)
Item weight: 21g / 0.74oz
Package size: 10 * 7.5 * 2.5cm / 3.93 * 2.95 * 0.98 (L * W * H)
Package weight: 40g / 1.36oz
Package list:
1 * BT controller
1 * QR code card
Note: Requires BT 4.0 compatible device, for Android device must be at least for Android 4.3 and for IOS system must be at least for IOS 6.0
